SOAP API in Visual Studio in C#

To create a api there are alot opporunities. Right now I prefer SOAP-APIs in Visual Studio because it is easy as possible to create such one.

I will do this with Visual Studio 2017 and a console-application, so nothing special:

For the example I googled for free SOAP-Webservice and got this one here that can handle some information about the BLZ:

http://www.thomas-bayer.com/axis2/services/BLZService?wsdl

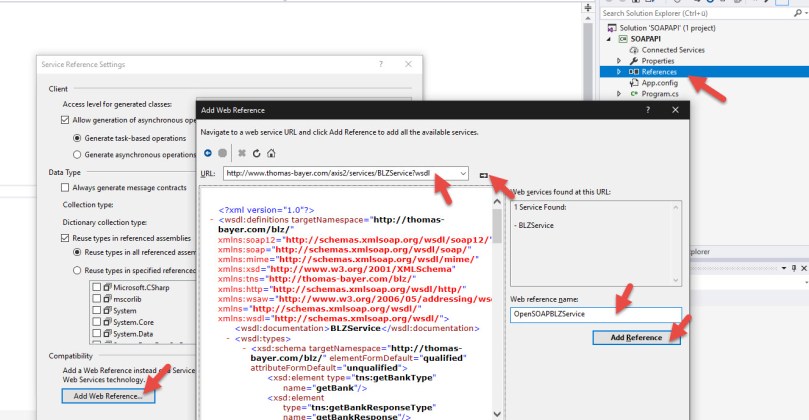

To start in Visual Studio I add a reference like this:

  1. Rightclick in the solution explorer at references.
  2. Click “Add Service Reference”
  3. Click “Advanced…”
  4. Click “Add Web Reference…”
  5. Paste the URL and click on the arrow.
  6. Type in a name that specifies the webservice-name in your project.
  7. Click “Add Reference”.
  8. Done!

<

pre>This will add a folder to your projects called “Web References” and will add the service. Like this you will also get every object and method that you need. So I am able to write this code:

var BLZService = new OpenSOAPBLZService.BLZService();
 var Bank = BLZService.getBank("10070100");
 Console.WriteLine(Bank.bezeichnung + " - " + Bank.ort);
 Console.ReadLine();

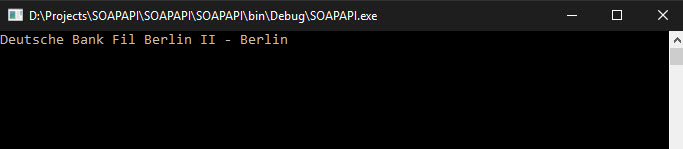

Here we create a new object based on the service that we created, create a new bank object (which class is also created by the Add-Reference-Function) and show the bank description and the location of the bank in the console. So we get this out here:

Advertisements

dynamic read on JSON response in c#

If you want to work with a JSON-formatted response, there are many ways to handle this. In the following I could figure out a dynamic read that will give you the opportunity to use the different types.

The first code-example shows how to download some data with a given URL. For this you will need the assembly “System.Net”:

string url = "address?$format=json";
var webClient = new WebClient();
String jsonResponse = webClient.DownloadString(url);

The second code-example shows how to read out the single attributes. For this you have to include the assembly “Newtonsoft.Json”:

dynamic results = JsonConvert.DeserializeObject(jsonResponse);

string myName = results.Name;
string myFirstName = results.FirstName;
int myAge = results.Age;
//...

After using the JsonConvert.DeserializeObject-function you can use every single attribute.

JSON response via NAV

#This article will work with NAV 2016!

To get a JSON Response via NAV we can create a webservice-codeunit and publish it. Following this we probably use SOAP to publish the functions and will get a XML-response. In some projects it is easier to handle a JSON response. As well there are opportunities to read out a NAV response with the JSON format. The easiest way to do this is by publishing a page. To do this just go to the table “Web Service” (2000000076) and create an entry for a page. If you run this via the normal user-client (search for “web service”) you will see a Odata-link. This link is generated automatic. If you set on the Odata on the service tier and use this link you will get a response with the data of the page.

Probably it is xml-format but you can add the following at the end of you Odata-url:

?$format=json

Now your response should use the JSON-format.

If you want to do the same with a codeunit you will get no odata-link.  This is because we use a REST-service. A REST-service is done to have the basic-handler GET, POST, PUT, … . So if you would try to write some codeunit that should provide a json-response, the codeunit had to handle all of this basic-statements. A codeunit in NAV is not made to provide data like a real REST-service. But if you want to use data that way -> publish the data with a page and you can work with this.
